S Series · Four-seat golf

Hawke S4 Compact, compact 4-seater electric golf buggy

The short-wheelbase four-seater, turning within 3.5 m for tight paths and gateways.

Request a quote Get the brochure and price

For private land. Built to order: a real person replies with your brochure and price, usually within a few working hours.

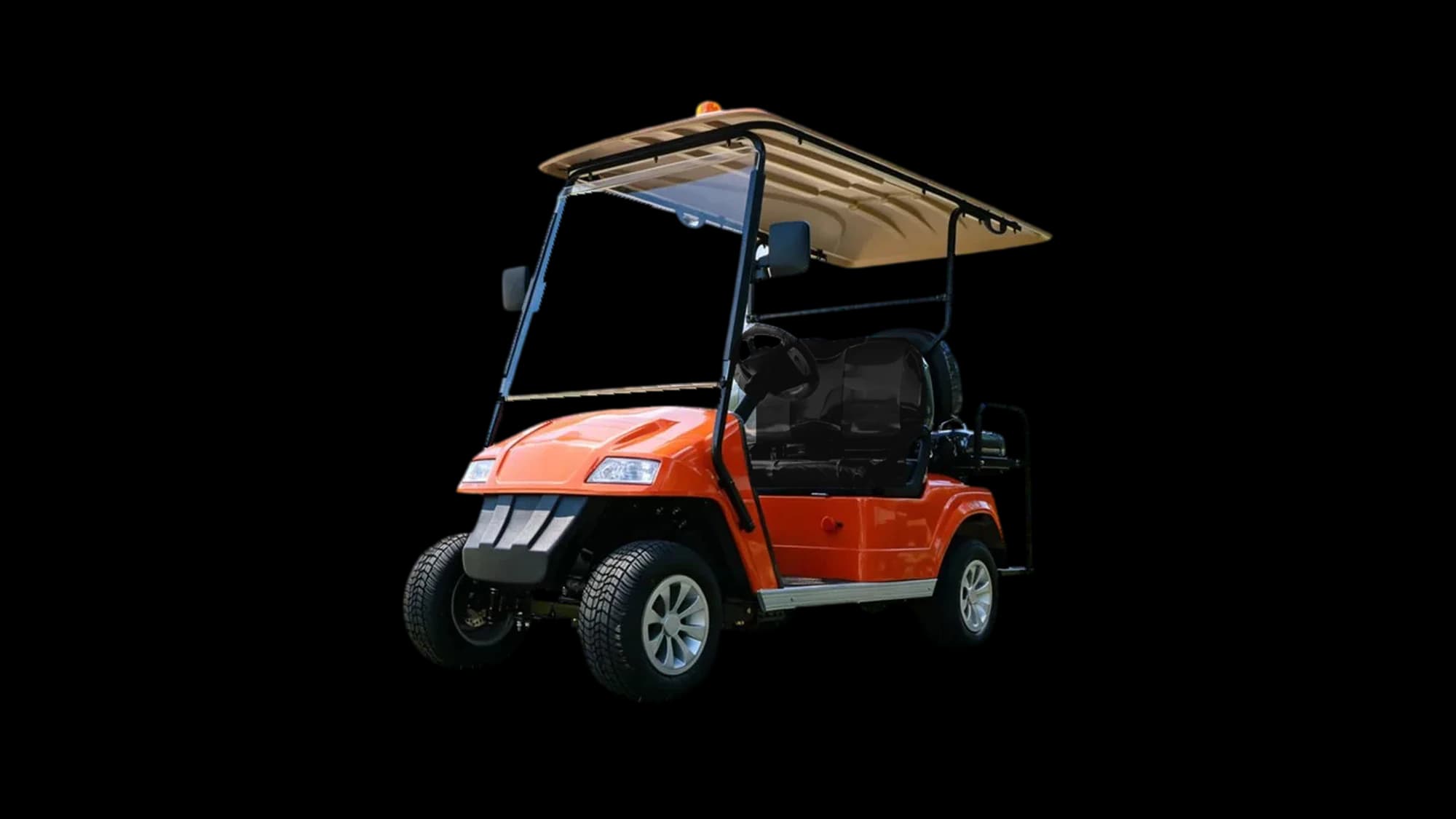

Hawke S4 Compact compact 4-seater electric golf buggy, front three-quarter view

Shown in orange.

Seats: 4
Range: 80+km
Top speed: 32km/h
Motor: 3.8kW
Maximum load: 320kg

Overview

Measuring 2.9 m on a 1,700 mm wheelbase, this compact four-seater turns within a 3.5 m radius and still covers over 80 km of loaded range.

It suits sites where space sets the rules: courtyards, narrow service paths and tight sheds.

Unlike the standard S4 it also carries a rear cargo platform and a front towing bracket.

Colour, specified to order

Body, as shown: Orange

This is the finish shown in the photographs. Body, roof and seat colours, and your own livery, are chosen with you and confirmed on your quotation.

Power

Over 80 km of loaded range.

A 48 V Sepex drive, rated to climb a 20% gradient. It charges in approx. 8-10 hours.

Battery8 × deep-cycle cell (185 Ah at 5 hr rate)
ChargerOn-board, 36 V, 25 A, 48 V, 22 A output
Charging timeApprox. 8-10 hours (typical 48 V deep-cycle)

Comfort

Room for 4, on a compact footprint.

A 3.5 m turning radius for paths, yards and tight corners. Seat trim, roof and weather protection are specified with you.

Wheelbase1,700 mm
Turning radius3.5 m
Length × width × height2,920 × 1,180 × 1,890 mm

SpecHawke S4 CompactRef HK-S4-03

Specification

Get the brochure and price

Compare with

Side by side with another golf buggy.

Capacity and use
	Hawke S4 Compact	Hawke S2	Hawke S6
Seats	4 seats	2 seats	6 seats
Maximum load	320 kg	270 kg	510 kg
Road use	Private land	Private land	Private land

Dimensions and weight
	Hawke S4 Compact	Hawke S2	Hawke S6
Length × width × height	2,920 × 1,180 × 1,890 mm	2,410 × 1,180 × 1,800 mm	3,940 × 1,180 × 1,980 mm
Wheelbase	1,700 mm	1,680 mm	2,430 mm
Ground clearance	120 mm	120 mm	120 mm
Front track	855 mm	1,010 mm	960 mm
Rear track	975 mm	980 mm	980 mm
Turning radius	3.5 m	3 m	4.5 m
Kerb weight	540 kg	515 kg	630 kg

Powertrain and battery
	Hawke S4 Compact	Hawke S2	Hawke S6
Motor	3.8 kW motor	3.8 kW motor	5 kW AC motor
Drive system	48 V Sepex	48 V Sepex	48 V, 5 kW AC
Battery	8 × deep-cycle cell (185 Ah at 5 hr rate)	8 × deep-cycle cell (185 Ah at 5 hr rate)	8 × deep-cycle cell (185 Ah at 5 hr rate)
Range, loaded	Over 80 km	Over 80 km	Over 80 km
Top speed	32 km/h	32 km/h	30 km/h
Charger	On-board, 36 V, 25 A, 48 V, 22 A output	On-board, 48 V, 25 A output	On-board, 48 V, 25 A output
Charging time	Approx. 8-10 hours (typical 48 V deep-cycle)	Approx. 8-10 hours (typical 48 V deep-cycle)	Approx. 8-10 hours (typical 48 V deep-cycle)
Gradeability	20%	25%	20%
Controller	400 A at 2 min	400 A at 2 min	400 A at 2 min

Chassis
	Hawke S4 Compact	Hawke S2	Hawke S6
Suspension	Front and rear plate spring + cylinder hydraulic shock absorber	Front independent suspension and rear taper leaf spring + cylinder hydraulic shock absorber	Front independent suspension and rear taper leaf spring + cylinder hydraulic shock absorber
Steering	Single-stage rack and pinion steering system, automatic rocker compensating function	Single-stage rack and pinion steering system, automatic rocker compensating function	Single-stage rack and pinion steering system, automatic rocker compensating function
Rear axle	Integrated, gear ratio 12.76:1	Aluminium differential cage, integrated, gear ratio 12.76:1	Aluminium differential cage, integrated, gear ratio 12.76:1

Indicative figures, confirmed on your quotation. Range varies with load, terrain and temperature. The S4 Compact is for private land.

FAQ

Questions about the S4 Compact

How much does the Hawke S4 Compact cost?

The Hawke S4 Compact is priced to your configuration, branding and fleet size, confirmed on a tailored quote. We aim to offer the best vehicles at the most competitive, affordable rate, and to beat any genuine like-for-like quote.

Who is the Hawke S4 Compact for?

Measuring 2920 mm on a 1700 mm wheelbase, this compact four-seater turns within a 3.5 m radius and still covers over 80 km of loaded range. It suits sites where space sets the rules: courtyards, narrow service paths and tight sheds. Unlike the standard S4 it also carries a rear cargo platform and a front towing bracket. It is at home across estates, resorts, golf clubs, holiday parks and private events.

Can the Hawke S4 Compact be used on the road?

No. The Hawke S4 Compact is built for private land: estates, resorts, golf courses, grounds and venues, and is not for use on public roads. If your work crosses a public road, ask us about the Hawke C500, the one vehicle in our range that is EEC type approved and can be registered for road use.If your work crosses a public road, tell us where and we will advise honestly on what is possible.

Can I brand the Hawke S4 Compact for my business or fleet?

Yes. Custom colours, livery, upholstery and your logo are a core part of what we do, so a fleet can be finished entirely to your brand. Body, roof and seat colours, and your own livery, are chosen with you and confirmed on your written quotation.

What is the range, and how do I charge it?

The Hawke S4 Compact is quoted at over 80 km of range; real range depends on load, terrain and temperature. It charges from a standard supply, ready for a full day's use, and we confirm the battery and charge time for your chosen specification.

What warranty and support come with the Hawke S4 Compact?

Every vehicle is backed by a 3-year warranty and access to our 24-hour priority call-out, with servicing and support across the UK and worldwide. We are built to look after you long after delivery.

Do you deliver the Hawke S4 Compact worldwide?

Yes. We configure to your specification and deliver across the UK and internationally, coordinating freight and import so your vehicle arrives ready to use.
