S Series · Four-seat golf

Hawke S4, 4-passenger electric golf cart

The most-configured four-seat all-rounder, with over 62 miles of loaded range at 20 mph.

Request a quote Get the brochure and price

For private land. Built to order: a real person replies with your brochure and price, usually within a few working hours.

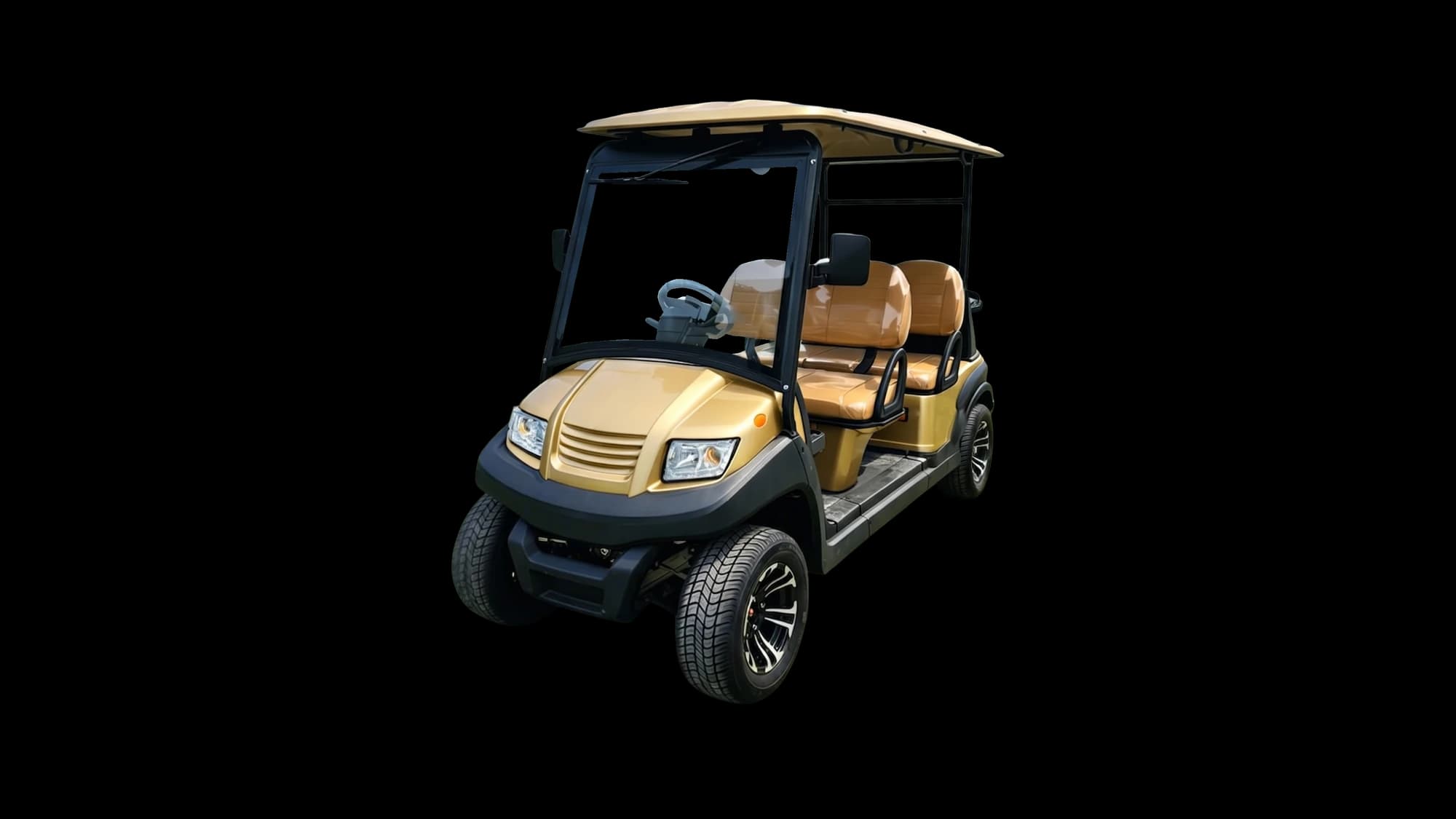

Hawke S4 4-passenger electric golf cart, front three-quarter view

Shown in champagne gold.

Passengers: 4
Range: 62+miles
Top speed: 20mph
AC motor: 5kW
Maximum load: 820lb

Overview

The range's most-configured all-rounder, a four-passenger built on a 48 V 5 kW AC drive with over 62 miles of loaded range, a 20 mph top speed and 25% gradeability.

Clubs and estates choose it as the one cart that covers every daily job.

Next to the S4 Plus it keeps the stronger AC powertrain and the longer range rather than the Plus's higher trim.

Color, specified to order

Body, as shown: Champagne gold

This is the finish shown in the photographs. Body, roof and seat colors, and your own livery, are chosen with you and confirmed on your quotation.

Power

Over 62 miles of loaded range.

Battery8 × deep-cycle cell (185 Ah at 5 hr rate)
ChargerOn-board, 48 V, 25 A output
Charging timeApprox. 8-10 hours (typical 48 V deep-cycle)

Comfort

Room for 4, on a compact footprint.

A 14.8 ft turning radius for paths, yards and tight corners. Seat trim, roof and weather protection are specified with you.

Wheelbase96 in
Turning radius14.8 ft
Length × width × height124 × 46 × 78 in

SpecHawke S4Ref HK-S4-01

Specification

Get the brochure and price

Compare with

Side by side with another golf cart.

Capacity and use
	Hawke S4	Hawke S2	Hawke S6
Seats	4 seats	2 seats	6 seats
Maximum load	820 lb	600 lb	1,120 lb
Road use	Private land	Private land	Private land

Dimensions and weight
	Hawke S4	Hawke S2	Hawke S6
Length × width × height	124 × 46 × 78 in	95 × 46 × 71 in	155 × 46 × 78 in
Wheelbase	96 in	66 in	96 in
Ground clearance	4.7 in	4.7 in	4.7 in
Front track	38 in	40 in	38 in
Rear track	39 in	39 in	39 in
Turning radius	14.8 ft	9.8 ft	14.8 ft
Curb weight	1,390 lb	1,140 lb	1,390 lb

Powertrain and battery
	Hawke S4	Hawke S2	Hawke S6
Motor	5 kW AC motor	3.8 kW motor	5 kW AC motor
Drive system	48 V, 5 kW AC	48 V Sepex	48 V, 5 kW AC
Battery	8 × deep-cycle cell (185 Ah at 5 hr rate)	8 × deep-cycle cell (185 Ah at 5 hr rate)	8 × deep-cycle cell (185 Ah at 5 hr rate)
Range, loaded	Over 62 miles	Over 50 miles	Over 50 miles
Top speed	20 mph	20 mph	19 mph
Charger	On-board, 48 V, 25 A output	On-board, 48 V, 25 A output	On-board, 48 V, 25 A output
Charging time	Approx. 8-10 hours (typical 48 V deep-cycle)	Approx. 8-10 hours (typical 48 V deep-cycle)	Approx. 8-10 hours (typical 48 V deep-cycle)
Gradeability	25%	25%	20%
Controller	400 A at 2 min	400 A at 2 min	400 A at 2 min

Chassis
	Hawke S4	Hawke S2	Hawke S6
Suspension	Front independent suspension and rear taper leaf spring + cylinder hydraulic shock absorber	Front independent suspension and rear taper leaf spring + cylinder hydraulic shock absorber	Front independent suspension and rear taper leaf spring + cylinder hydraulic shock absorber
Steering	Single-stage rack and pinion steering system, automatic rocker compensating function	Single-stage rack and pinion steering system, automatic rocker compensating function	Single-stage rack and pinion steering system, automatic rocker compensating function
Rear axle	Aluminum differential cage, integrated, gear ratio 12.76:1	Aluminum differential cage, integrated, gear ratio 12.76:1	Aluminum differential cage, integrated, gear ratio 12.76:1

Indicative figures, confirmed on your quotation. Range varies with load, terrain and temperature. The S4 is for private land.

FAQ

Questions about the S4

How much does the Hawke S4 cost?

The Hawke S4 is priced to your configuration, branding and fleet size, confirmed on a tailored quote. We aim to offer the best vehicles at the most competitive, affordable rate, and to beat any genuine like-for-like quote.

Who is the Hawke S4 for?

The range's most-configured all-rounder, a four-passenger built on a 48V 5KW AC drive with over 62 miles of loaded range, a 20 mph top speed and 25% gradeability. Clubs and estates choose it as the one cart that covers every daily job. Next to the S4 Plus it keeps the stronger AC powertrain and the longer range rather than the Plus's higher trim. It is at home across estates, resorts, golf clubs, resort parks and private events.

Can the Hawke S4 be used on the road?

No. The Hawke S4 is built for private land: estates, resorts, golf courses, grounds and venues. It is not for use on public streets.

Can I brand the Hawke S4 for my business or fleet?

Yes. Custom colors, livery, upholstery and your logo are a core part of what we do, so a fleet can be finished entirely to your brand. Body, roof and seat colors, and your own livery, are chosen with you and confirmed on your written quotation.

What is the range, and how do I charge it?

The Hawke S4 is quoted at over 62 miles of range; real range depends on load, terrain and temperature. It charges from a standard supply, ready for a full day's use, and we confirm the battery and charge time for your chosen specification.

What warranty and support come with the Hawke S4?

Every vehicle is backed by a 3-year warranty and access to our 24-hour priority call-out, with servicing and support across the UK and worldwide. We are built to look after you long after delivery.

Do you deliver the Hawke S4 worldwide?

Yes. We configure to your specification and deliver across the UK and internationally, coordinating freight and import so your vehicle arrives ready to use.
